Agent Store Capacity Alert

Login

1. Go to the Web URL - https://mesop3.omni.manh.com
2. Enter the assigned user and password. Use the allotted account from Exchange1 through Exchange40.
3. If you are unable to login, ask for help from Manhattan Team.

Initialize Agent

1. Launch Agent Foundry from the Hamburger Menu.
2. From the extreme top-right corner, click on the “Create an Agent” dropdown and select “Workflow Builder”.
3. Click on “Create Agent from Scratch”.
4. Go to Agent Configuration by clicking the “Gear” icon, next to the Agent Name.
5. Change the Agent Name as you see fit.
6. Scroll down to set the parameters “Conversational” and “Allow Attachment from Chat” flag as provided in the Agent Details section.

Important Note

• To add a new Task, click the “default” task dropdown, then click on Add New.
• To add an Action, click on the + sign on the Initial Screen or at the end of the current action on the screen.

Agent Details

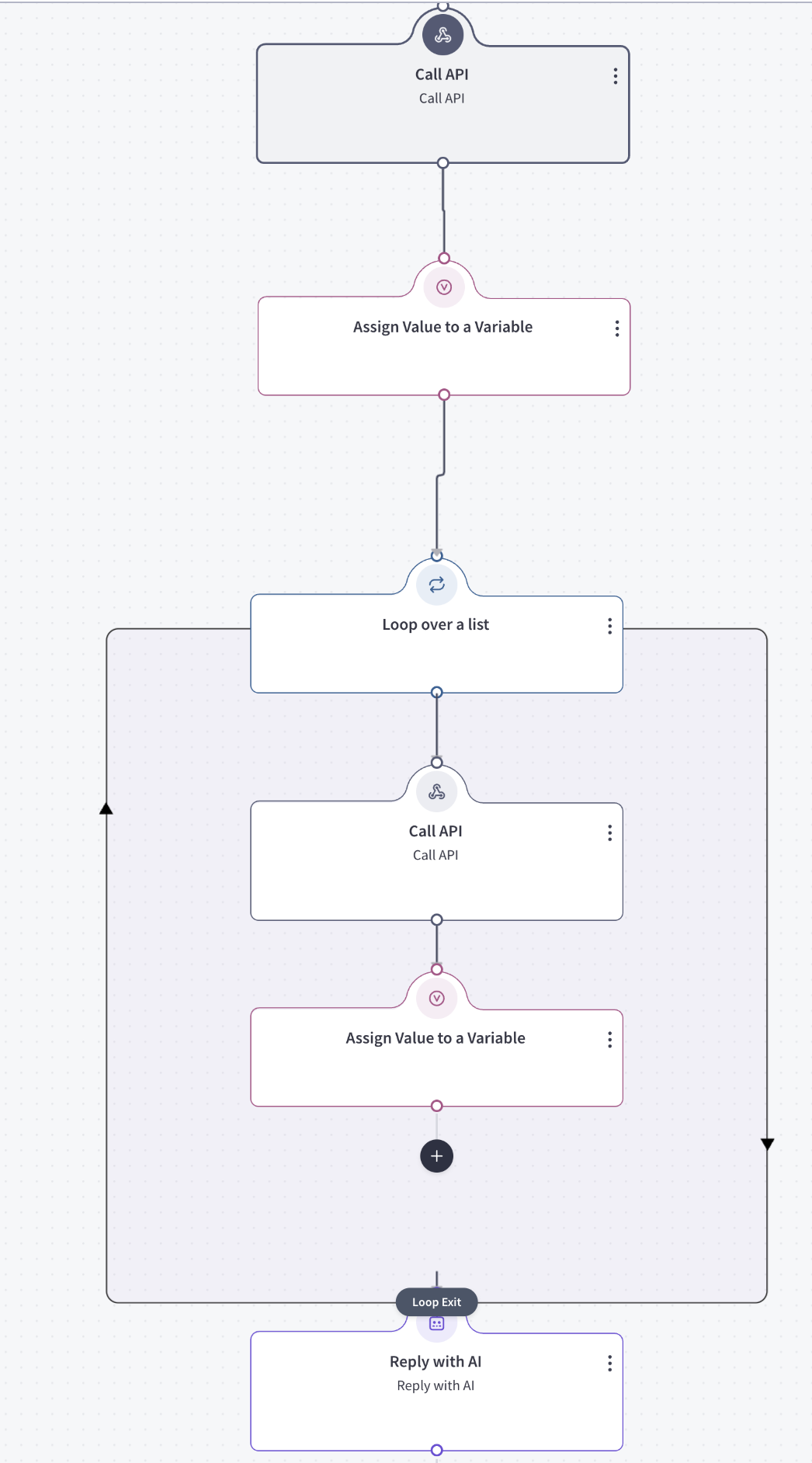

Actions

• Add an action by clicking plus.

Task Name: default

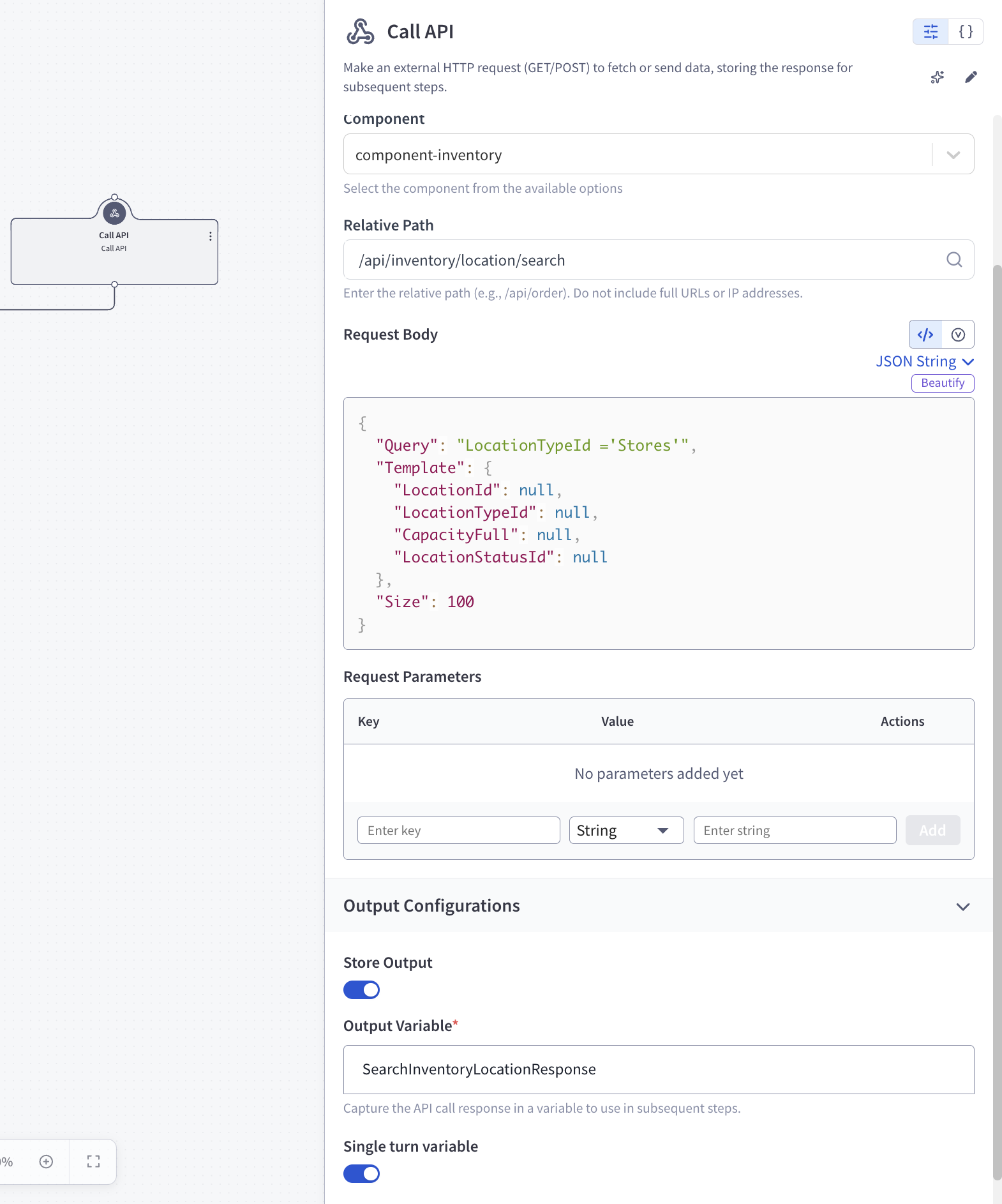

Action 1 — Call API (callService)

Action Details

• httpMethod: POST

• component: component-inventory

• relativePath: /api/inventory/location/search

• inputDocument:

  {
    "Query": "LocationTypeId ='Stores'",
    "Template": {
      "LocationId": null,
      "LocationTypeId": null,
      "CapacityFull": null,
      "LocationStatusId": null
    },
    "Size": 100
  }


• outputVariableName: SearchInventoryLocationResponse

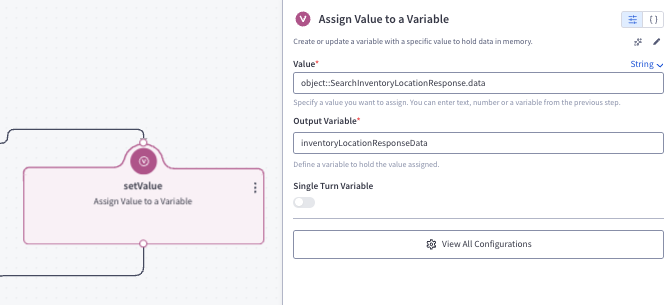

Action 2 — Assign Value to a Variable (setValue)

Action Details

• User Input: object::SearchInventoryLocationResponse.data
• outputVariableName: inventoryLocationResponseData

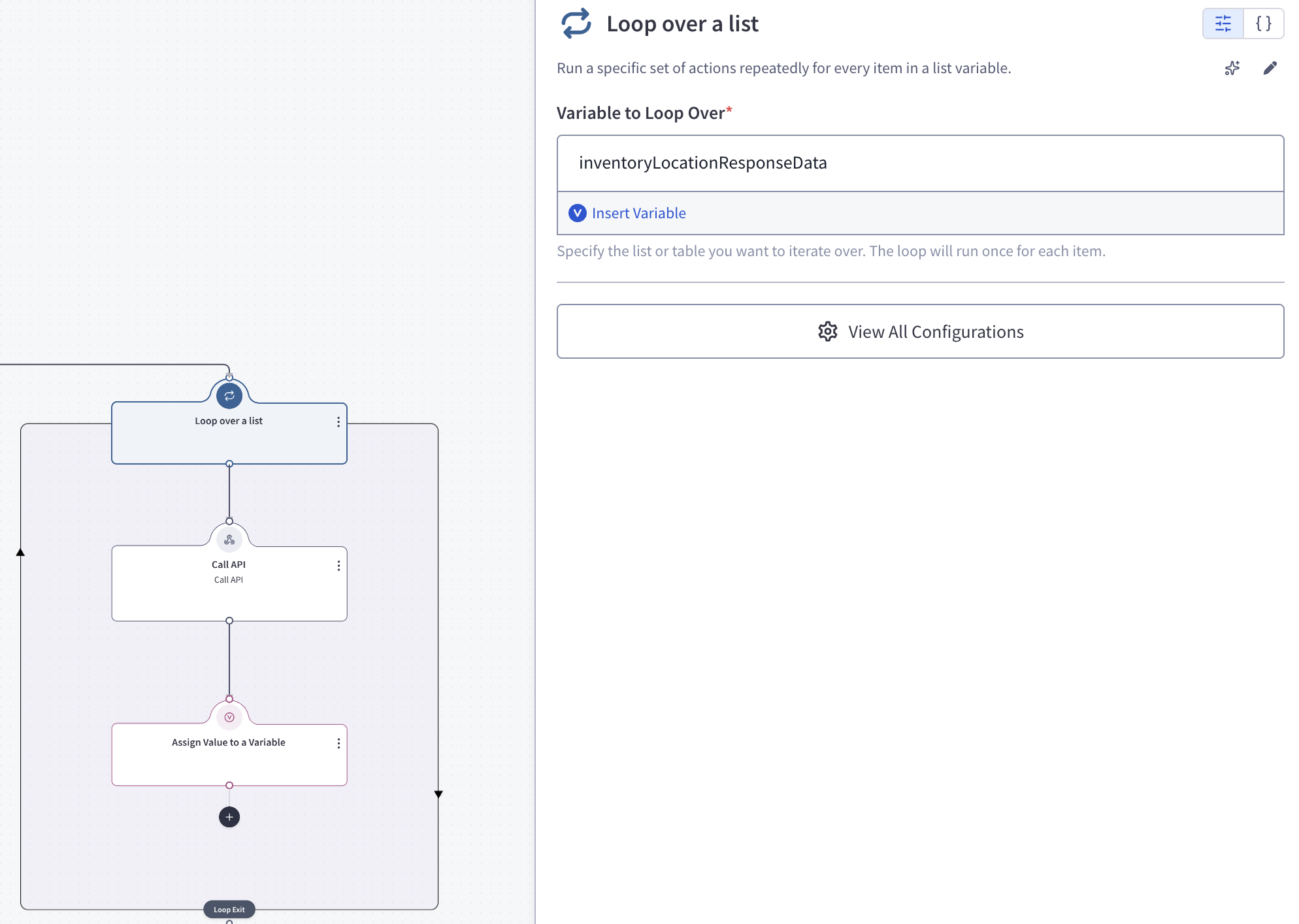

Action 3 — Loop over a list (loop)

Action Details

• inputVariableName: inventoryLocationResponseData
• maxThreads: 4

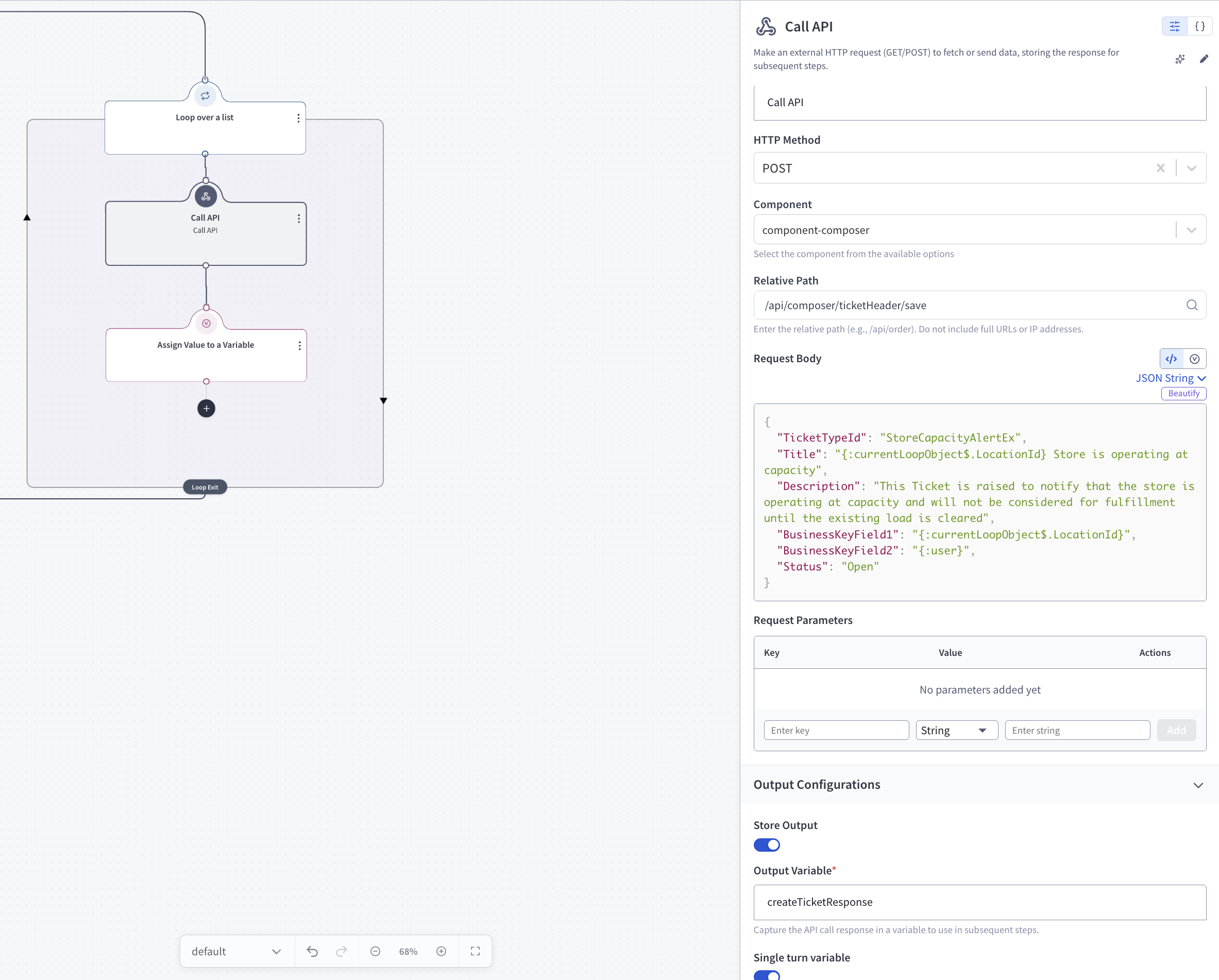

Action 3.1 — Call API (callService)

Action Details

• httpMethod: POST

• component: component-composer

• relativePath: /api/composer/ticketHeader/save

• inputDocument:

  {
    "TicketTypeId": "StoreCapacityAlertEx",
    "Title": "{:currentLoopObject$.LocationId} Store is operating at capacity",
    "Description": "This Ticket is raised to notify that the store is operating at capacity and will not be considered for fulfillment until the existing load is cleared",
    "BusinessKeyField1": "{:currentLoopObject$.LocationId}",
    "BusinessKeyField2": "{:user}",
    "Status": "Open"
  }


• outputVariableName: createTicketResponse

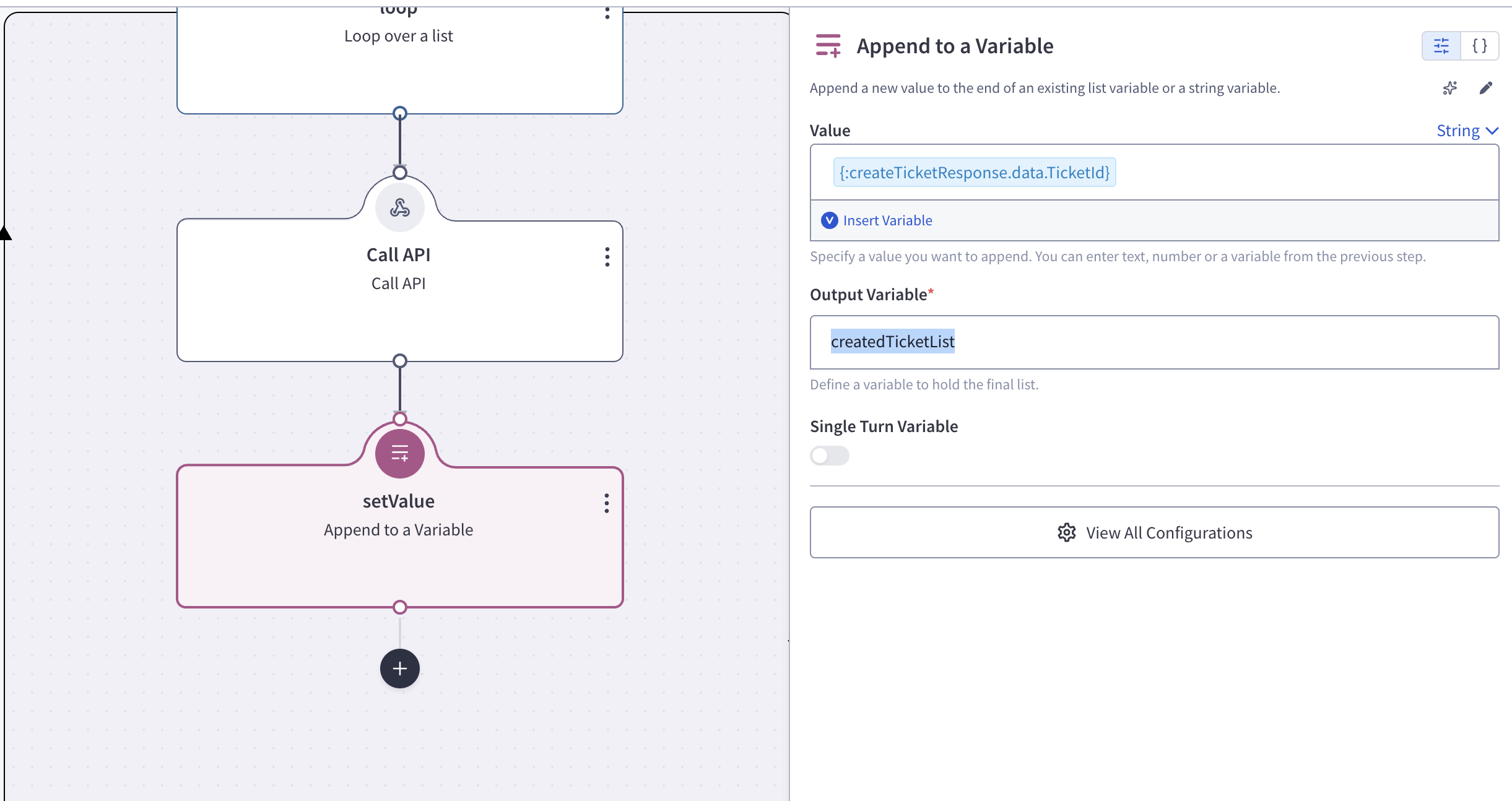

Action 3.2 — Append to a Variable (setValue)

Action Details

• User Input: {:createTicketResponse.data.TicketId}
• outputVariableName: createdTicketList

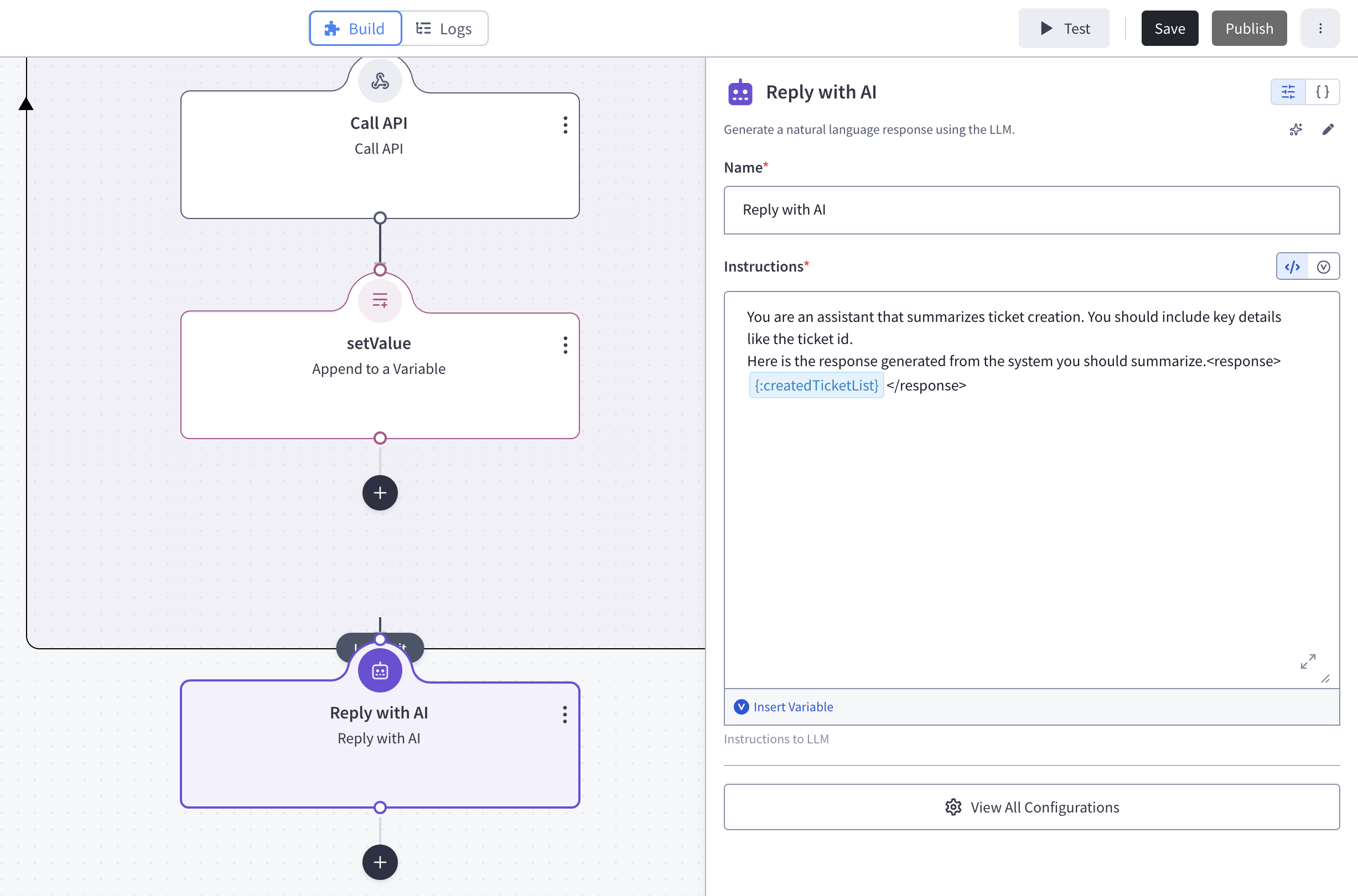

Action 4 — Reply with AI (setValue)

Action Details

• Instructions: ‘You are an assistant that summarizes ticket creation. You should include key details like the ticket id. Here is the response generated from the system you should summarize.{:createdTicketList}’
